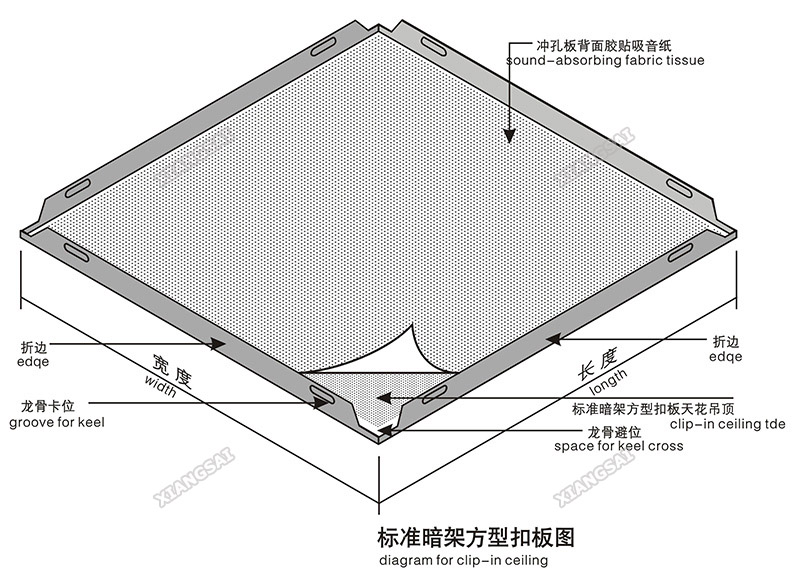

CLIP-IN CEILING PANEL SIZES AVAILABLE:
100*100mm;100*300mm;100*600mm;100*900mm
150*150mm;300*300mm;400*400mm;500*500mm
600*600mm;300*600mm;300*1200mm;600*1200mm

THICKNESS OF CLIP-IN CEILING PANEL :
0.60mm,0.70mm,0.80mm,0.90mm,1.0mm or above.

SIDEWALL HEIGHT OPTIONS: 19mm and 25mm.

EDGE TYPE AVAILABLE::Straight Edge and Bevel Edge.

Base raw materials:
Aluminium Alloy
Surface colour treatment methods:
All types of powder coating(ordinary,polyster), pre-painted colours,rolling painting;PVC laminating; PVDF painting and etc.

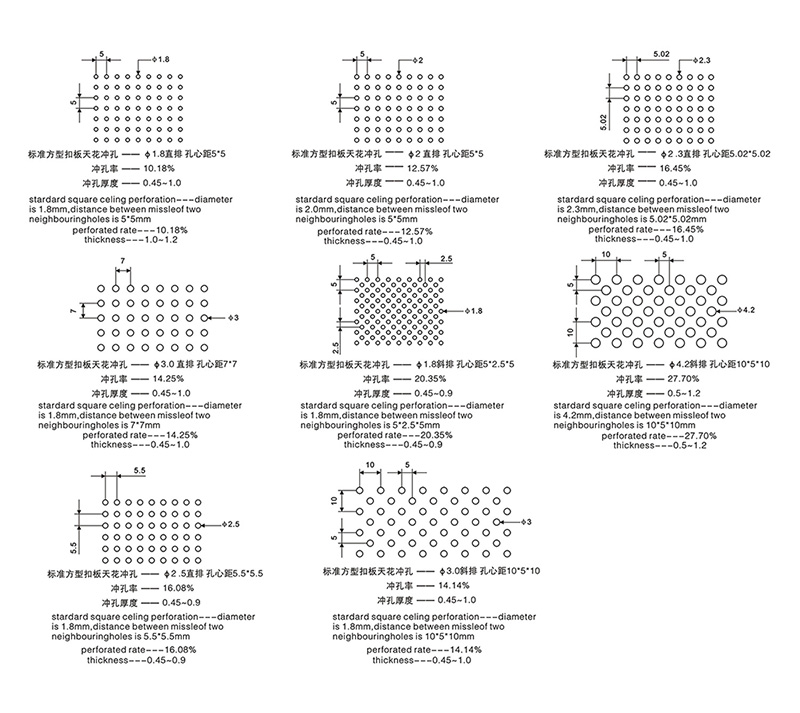

Perforation:
A full range of perforation patterns are available.
Aluminium ceilings maintain a range of perforating and custom perforations can be provided. Perforation patterns can be diagonal or straight row and the perforations can be provided in round, square or othe shapes of holes in various diameters and sizes. The panel can also be provided without perforations.

Features:
a)Fireproof B1 grade; damp resistance,temperature resistance,bacterium and sound asorption.No radiation,no harmful substance to human body; eviroment friendly.
b)Diversity colour and pattern options;clean and colour long lasting.
c)Perfect surface flatness and smoothness; surface are washable.Easy to clean and maintainlence.
d)light weightness easy for installation and uninstallation.






Application:
The installation of Layin panel features unique visual angle and beautiful lines. With quality surface colour treatment, it appears with super modern feelings.

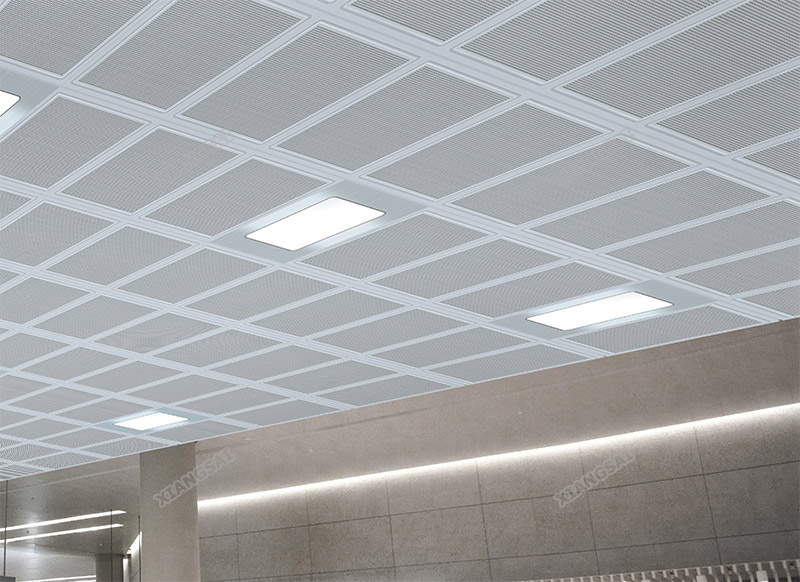

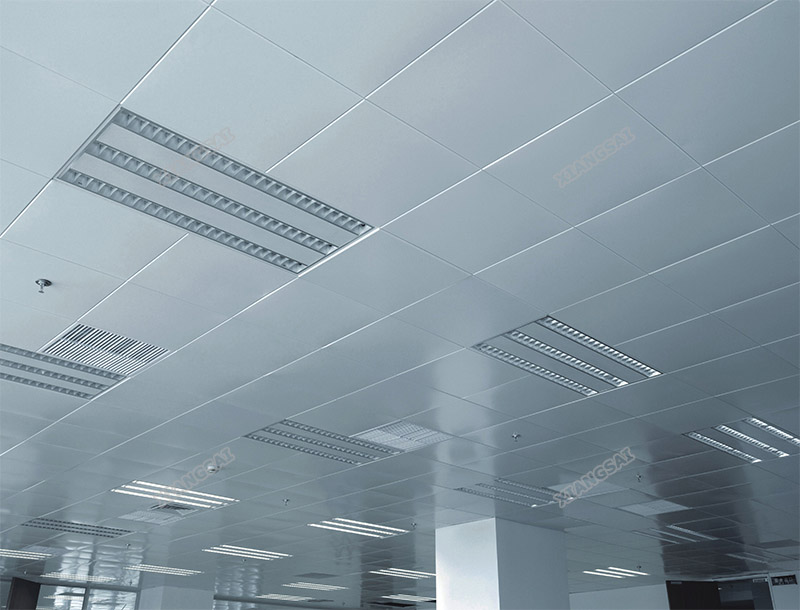

It mostly applied for big area; it can be installed for ceiling of airports,subways,bus stations,shopping malls;hotels;restaurants,hospitals,offices and etc. Especialy for space with humidity, its feature of rustless and anti-damp will be a good option.

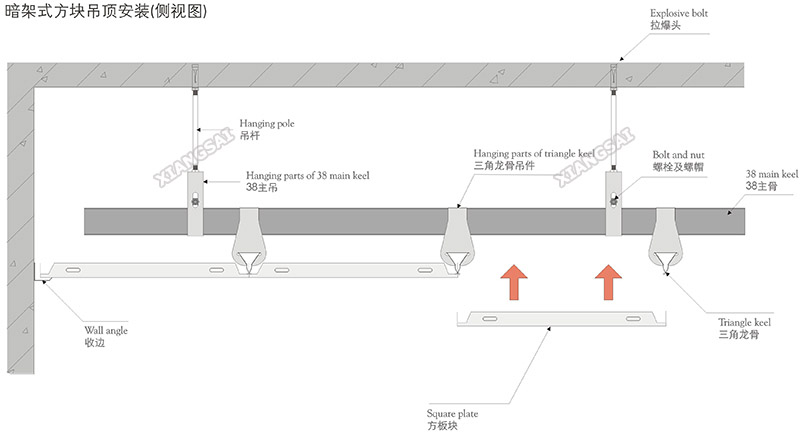

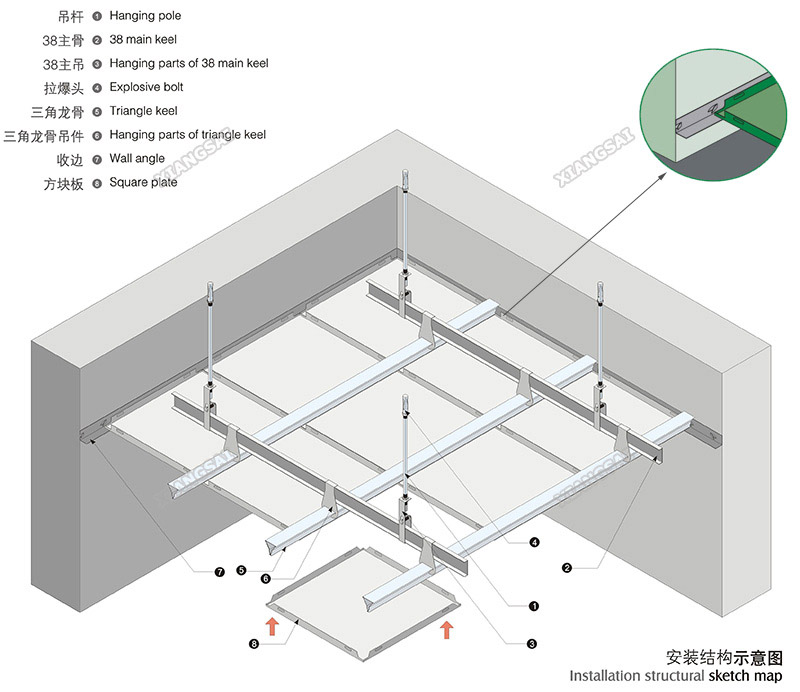

The Aluminium Lay-in ceiling panel system consists of a standard exposed suspension system in widths of 24mm or 15mm that is suspended with wire, angle or threaded rod. The panels are installed from above and simply lay on the flanges of the suspension system.

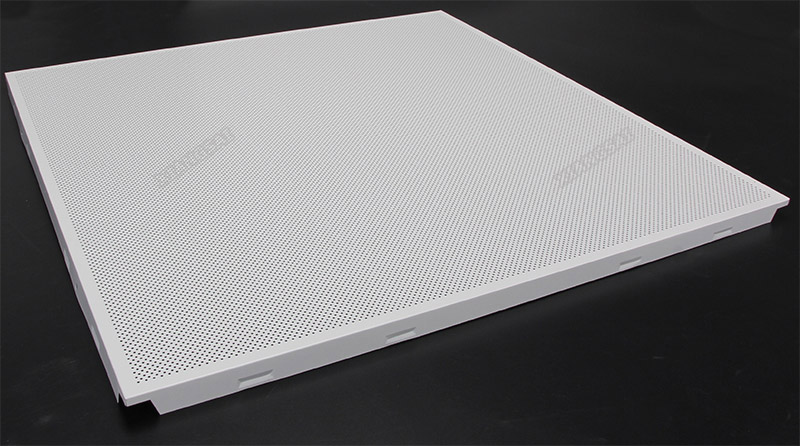

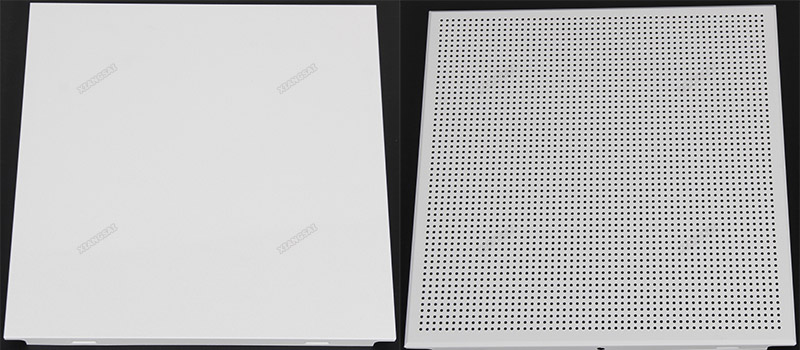

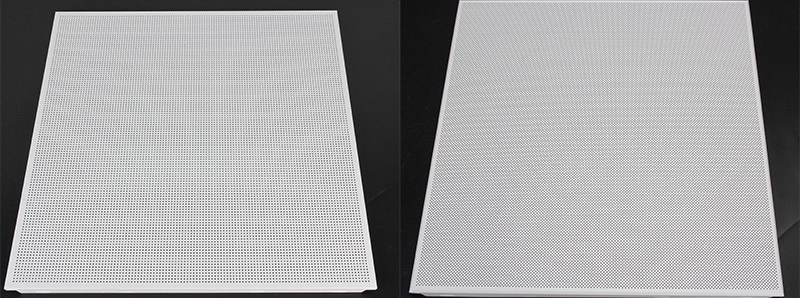

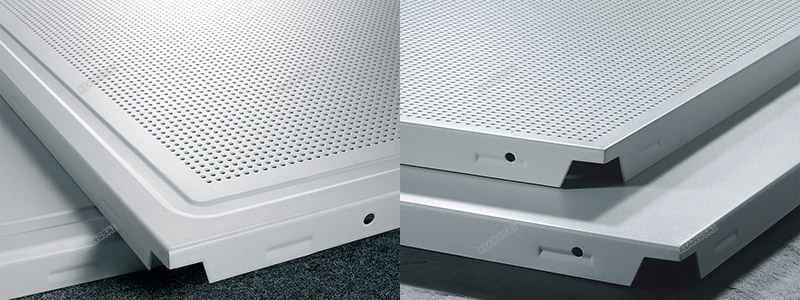

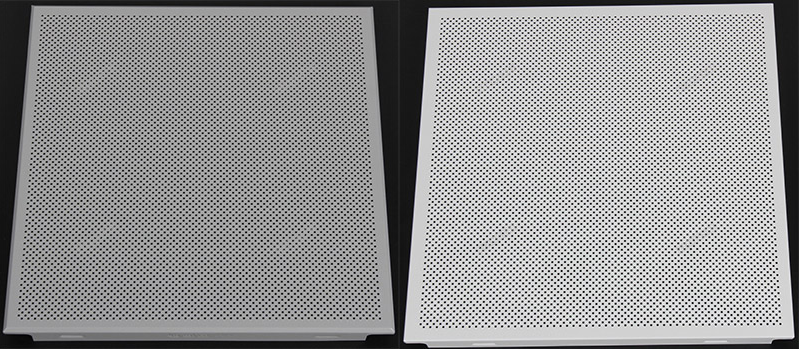

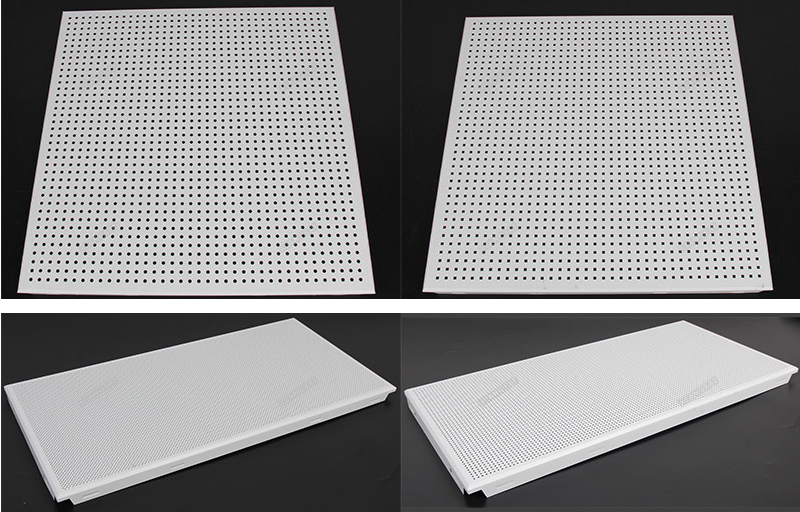

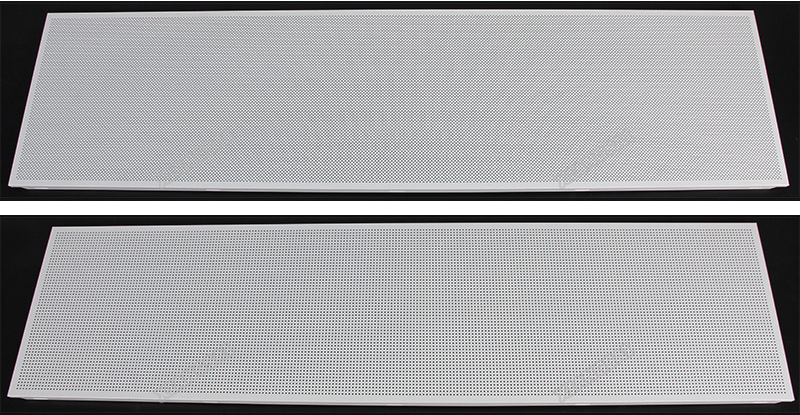

Products pictures:
